Control Layer Benchmarking

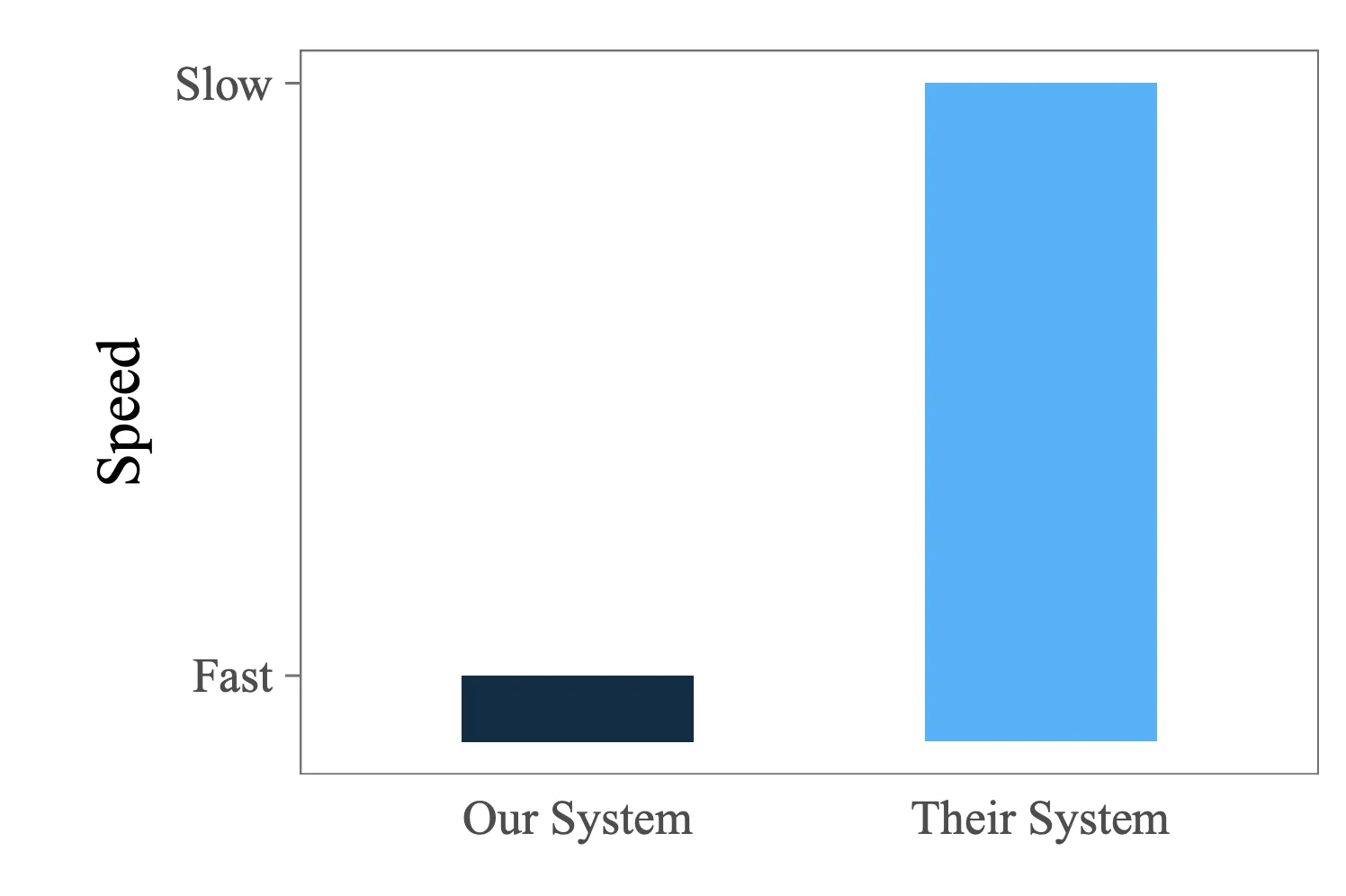

Benchmarking is hard.

We think our Control Layer (dwctl) is the fastest AI gateway around. We believe this because its written in Rust And therefore blazing fast , and because we thought about performance a lot while we were building it. We put it in production in our self-hosted inference stack, and we knew that it was fast because we didn’t notice it.

But we’re open sourcing it. And once its out there, it can be used in lots of different places, in lots of different ways. And so, to prove that it will be fast everywhere, we have to do benchmarking The usual caveats about general case benchmarks apply: the only realistic benchmarks are built by you, the user, since only you know what your application looks like. Every highly technical business for whom performance is a proof point eventually releases a weary blog post talking about how performance is multifaceted and can’t be captured by simple benchmarks. See here, here, here, here for interesting content. .

What are we benchmarking§

dwctl is an “AI Gateway”. For the purposes of this discussion, this is basically a reverse proxy that is specialised to openAI compatible requests. From our perspective, there are a few essential features:

1. Authentication. OpenAI standardised bearer token authentication for AI APIs, and it works great. AI gateways let you centralise auth in one place, across multiple providers. They also let you authenticate unauthenticated endpoints - like self-hosted LLMs, deployed in vllm, sglang, ollama, doubleword

2. Self-hostable. From a usability, privacy and security perspective - we aren’t willing to let a cloud hosted gateway man-in-the-middle all of our requests to AI providers, and I don’t think you should be either. Purely selfishly, since i’m benchmarking these things, I don’t want to deal with network hops, and trying to figure out where gateway providers have deployed their infra to try and benchmark them fairly.

3. Easy to use. Again partly selfish. But I haven’t got forever for this, and I want to be comprehensive. So if I couldn’t get the product up and running in a production-like configuration within 30 minutes, I dropped it.

Here’s a list of options:

These are all the offerings that I could find that met our requirements (and lots that don’t). If you know of another that i’ve missed out, let me know here

So the candidates are:

1. LiteLLM: Python, feature complete
2. Bifrost: Go, more minimal
3. dwctl: Rust, even more minimal (for now).

How to benchmark a proxy§

Benchmarking reverse proxies in general is pretty difficult. We’re low level enough that the details of the hardware and the network really matter, but high level enough that they’re easy to forget about Another call to do your own benchmarking, where a system doing well because you made peculiar hardware choices is actually a good thing. .

At the highest level, we need:

1. Something that sends traffic (A source)
2. Somewhere to deploy our proxy
3. Something that receives traffic, and returns responses (A sink)

You can put all this stuff on the same host, but then the benchmarking apparatus will interfere with your proxy. Really they should be on separate machines. All the details of how we do this (via a terraform plan) are here.

The sink is a simple openAI compatible server, built with rust’s axum library. It implements two endpoints (/v1/models/) which advertises the existence of a single model (called benchmark-model), and /v1/chat/completions, which accepts chat completion requests, and responds with a canned response.

The source of load is a similarly simple HTTP load tester. It spawns $N$ workers, each of which pull requests from a shared queue of fixed initial size, and send them on, concurrently, until the queue is exhausted. Think locust, k6. We expose a REST API to trigger benchmarks via POST requests, and a simple HTTP frontend to drive the API.

The source and the sink run together in the same binary Code here . For isolation purposes, we can use a separate source deployment from the sink deployment, by just deploying this binary in two different places, which we do, although this is probably unnecessary. To get a rough sense of the overhead of our setup here, we also benchmark the straight path from the source to the sink.

Hardware§

We’ll use pretty minimal hardware for a few reasons:

1. I suspect LiteLLM will be slower, for various reasons. Since its written in python, and therefore has the GIL to contend with, I don’t want to hamper it unnecessarily. This hamstrings the offerings that could make use of multiple cores (i.e. all of the other ones), but as we’ll see, they’ll win so handily it doesn’t matter too much. Consider this just another point in favour of proxies that can do real multithreading.
2. We’re benchmarking the performance of a single instance of each proxy. In practise, we can easily horizontally scale them as much as we want. But scaling from “1” to “more than 1” adds a disproportionate amount of complexity vs. the other scaling thresholds. Also, the less load each individual instance can handle, the more it costs you in production, and the more likely you run into performance problems (i.e. high tail latency while scaling new instances)

We use GCP’s “e2-medium” instances for all three components: the source, the system under test, and the sink.

Load§

What’s a realistic scenario for a AI gateway? As with everything, it depends. There are lots of parameters we might tune:

• Number of workers: the number of concurrent requests that can be sent at any one time - i.e. a proxy for the number of concurrent users the system can support.
• Total number of requests: the total number of requests we work through in the benchmark. Determines how long the benchmark runs for, and therefore the stability of the results, but not much else (as long as its above 1.).
• The request size: the size of the request payload. This is a proxy for the size of the prompt. Larger request prompts will (in principle) create more work for the proxy to do. Whether that work is mostly IO or compute depends on the proxy implementation.
• The amount of time the mocked sink waits between requests: This lets use tune between IO bound (lots of concurrent connections, where the proxy mostly waits for stuff to happen) to compute bound (the proxy is mostly busy doing stuff) regimes.

Configuring the servers§

We leave request logging enabled on all the servers, since the docs for each say that it doesn’t cause overhead. We set logging to the info level. As far as possible, (and where they exist), we follow the production guides for each server.

Results§

First benchmark: 100 concurrent users, 1KB request sizes, wait: 0.5s§

Lets start with a simple one: 100 concurrent users, 1KB Pretty small, since most tokenizers are ~3 tokens per character, this is ~300 tokens. request sizes. The upstream server responds pretty quickly: 0.5s, the idea is to strike a balance between streaming responses (which will return much more frequently than this) and non-streaming (which will return much less frequently) Really we should model both. But how many of each? This is why we should run our own benchmarks. .

The theoretical maximum throughput is 200 requests per second, since each request must wait 0.5s to be processed, and we have 100 concurrent workers.

The baseline is the performance of the load being driven directly at the sink, so shows the overhead of the load generator itself, the time spent in the sink that’s not accounted for in the wait time, and the network overhead In principle not all the overhead, since there’s a network hop missing.

We can see that, at 100 concurrent users, dwctl keeps up very well. The overhead stays in sight of the baseline, even at higher percentiles. Bifrost adds more overhead than dwctl but still performs reasonably. LiteLLM on the other hand, falls well behind - with over a full second of latency being added to the median request.

Faster upstream: 100 users, 1KB request sizes, wait: 0.1s§

Driving down the wait time increases the theoretical maximum throughput, since we don’t need to wait around. It increases the work the proxy has to do, since its being hit from both sides - responses come back quick, and requests come in quick. If you use a lot of fast models, this might be a realistic scenario.

The baseline starts to fall behind the theoretical numbers, and dwctl starts to fall behind the baseline. The latency is still likely imperceptible, even at the tail, but not by much, and adding network latency will take it over the edge.

Bifrost starts to struggle significantly at this load level, with much higher latency. LiteLLM continues to struggle even more, with a median latency of over 1.6s.

Backing off: 50 concurrent users, 1KB request sizes, wait: 2.0s§

Lets try lower load - half the users, and slower LLMs.

At low load, the only effect of the proxy should be a minor increase in latency. For both dwctl and Bifrost, this is the case - they’re almost indistinguishable from the baseline, with Bifrost performing slightly better on throughput and average latency, while dwctl is better at P50 and P90. I’d suspect we had some random blip here for dwctl that’s increasing the tail latency, but I don’t want to get into redoing experiments, since it seems like an obvious way that bias would slip in.

LiteLLM adds almost 200ms of latency on average, and over 2 seconds at the tail.

What to take away§

From these simple benchmarks, we can see that:

• dwctl performs best overall, with the lowest overhead across most scenarios. It keeps up well even under high load (100 concurrent users).
• Bifrost performs well at low load, matching dwctl’s performance. However, it struggles significantly under high load, showing much higher latency than dwctl.
• LiteLLM struggles to keep up with even moderate load, adding dramatic latency across all scenarios. At 100 concurrent users, it adds over 1 second of latency to median requests.

Why do we care?§

There’s an argument that goes: why do I care if my proxy is fast? It’s not the slowest part of my system - that’s almost certainly the LLM. To which - fair. This isn’t LLM inference optimization If you care about that sort of stuff, see here, here, here, here , where you’re working on systems that are painfully slow, and where if they were 10 times faster you could change the whole world.

The reason is that performance doesn’t only matter when its currently a bottleneck. Everything to do with LLMs changes every day. The systems we build could become a bottleneck tomorrow. If gateways show their promise, they’ll be in front of every single request that gets sent to every single AI provider. Those systems will get faster - they’ll send more data, serve more users, and return more tokens more quickly. When they do, if we’ve left 10x performance on the table, we’ll feel it immediately, and painfully.

Besides, the best possible thing that this part of the stack can do is disappear. It’s like the referee in a football game - if the viewer notices them, then they’re doing a bad job. If API consumers notice that they’re being served behind a reverse proxy, then the proxy is doing a bad job. Even small performance improvements can help us to disappear.

If you’d like to get started with the Doubleword Control Layer, join us on the github. For issues, with our performance or my benchmarking methodology, raise them on the issues page.
